Description

🔹Key Product Features

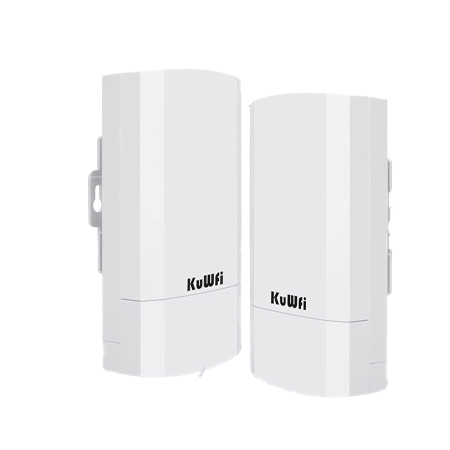

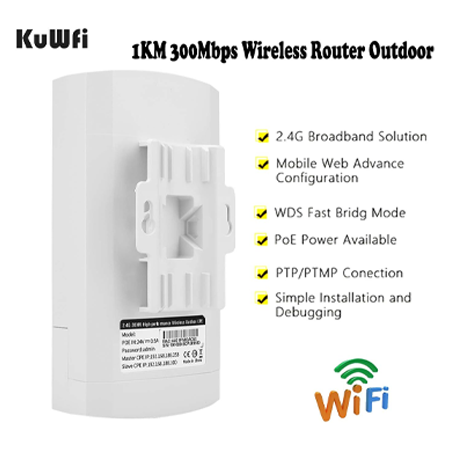

• What is CPE70R: KuWFi CPE70R is a 300Mbps outdoor wireless WiFi bridge designed for long-range transmission up to 1km. It supports stable PTP/PTMP connections with AP + bridge operation modes, configurable via LED display, and delivers reliable network expansion for multiple Wi-Fi transmission solutions.
• Extend Coverage: Enables point-to-point and point-to-multipoint (1–4) connections for buildings, surveillance cameras, and remote areas. Ideal for monitoring systems, elevator surveillance, and expanding coverage across multiple rooms or locations. The long-distance connectivity allows video and data to be transmitted wirelessly over 1km, eliminating dead zones.
• Remote Connection: Multi-mode WiFi bridge with AP, repeater, and bridge functions. Supports SSID broadcasting (up to 4 SSIDs), DHCP server, and Ethernet connectivity for flexible networking. Outdoor WiFi bridge ensures seamless connectivity between devices across extended distances.

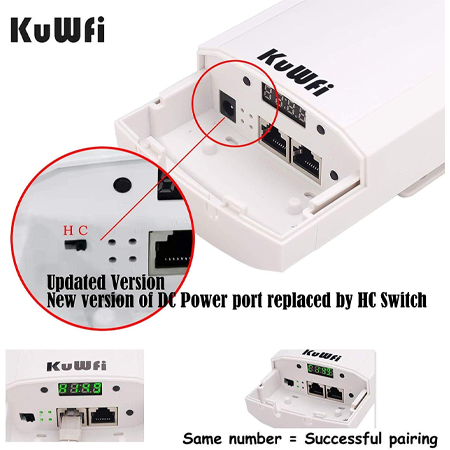

• Easy Pairing Control: LED display shows signal strength, operation mode, and channel. Master/slave switch and one-second auto-pairing button simplify setup without logging into the GUI, avoiding complex configuration procedures.
• Strong Signal Performance: Equipped with an 8dBi panel antenna and 802.11b/g/n standards, delivering stable 2.4GHz wireless speeds up to 300Mbps. Includes RF power adjustment, beamforming, and frequency analyzer for optimal performance in varied environments.
• Secure Networking: Built-in firewall with IP filtering, MAC filtering, URL filtering, and support for WPA, WPA2, WPA-PSK, and WPA2-PSK encryption ensures secure wireless transmission.
• Durable Outdoor Design: Engineered for reliable outdoor operation with PoE support (12V/0.5A), optimized RF performance, and weather-resistant construction for consistent long-range use.
• Technical Specifications: Memory: 64MB RAM, Flash: 8MBLAN/WAN Ports: 1xWAN/LAN, 10/100Mbps wired transfer rate
• WiFi Supported Frequency: 2.4GHz, RF
• Data: 2.4–2.84GHzSupports WDS and WPS functions
• Wireless Standards: IEEE 802.11b/g/n
• No modem function included
• Private mold: Yes
• Max LAN data rate: 100Mbps
• Power supply: 12V/0.5A (PoE supported)
